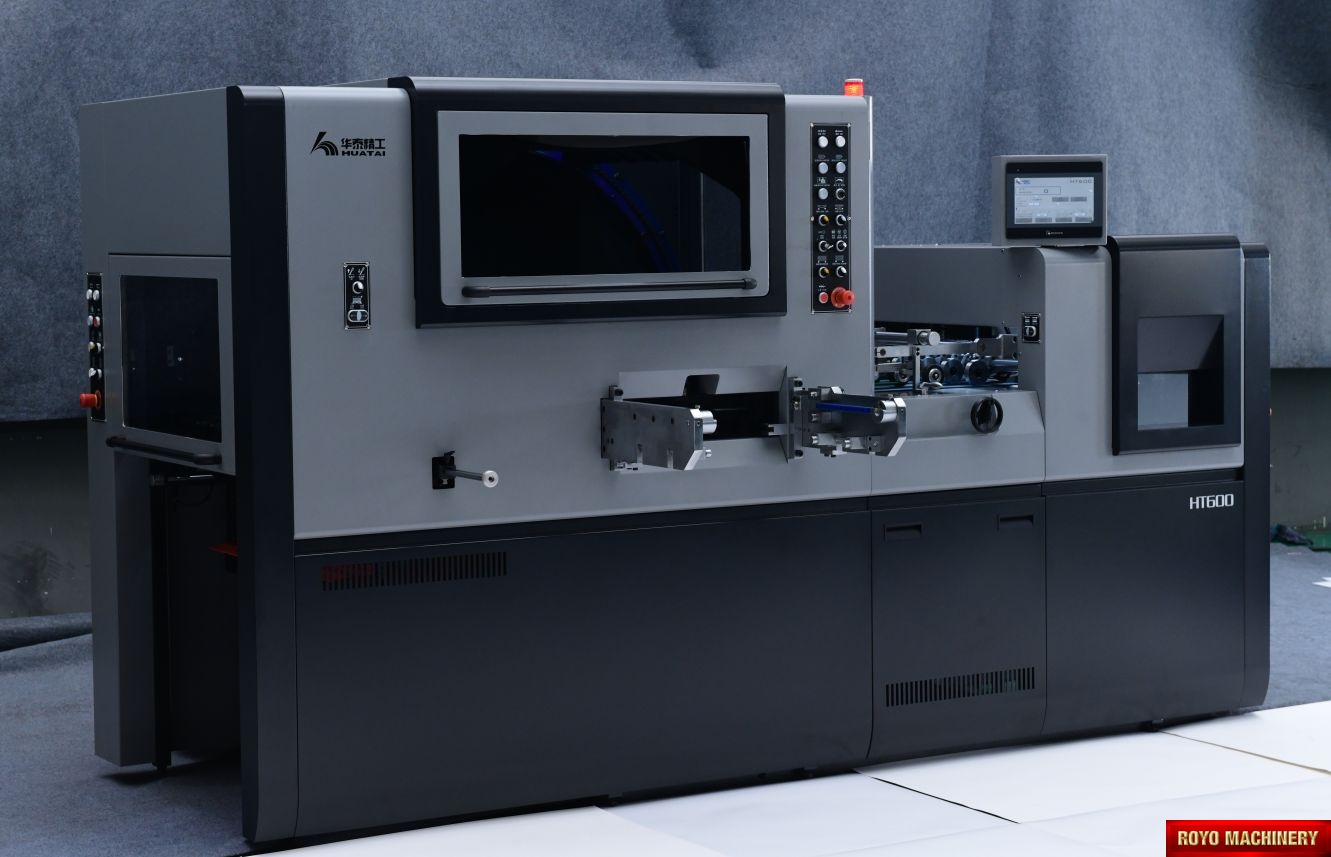

New Die Cutter Royo Machinery RHT-600
New Die Cutter Royo Machinery RHT-600, Features: Air clutch, Automatic pressure adjustment, CE Standard Machine, Central Lubrication, Corrugated board up to 4mm, Corrugated paper thickness: <4mm, Die cutting chase pneumatic locking mechanism, Die cutting plate size: 600 x 420mm, Die cutting precision: +/- 0.75mm, Digital LED control panel, Dimensions: 3166 x 1890 x 1855 mm, Frontal back and side registration mechanism, Gripper Margin: 8-17 mm, Height of cutting rules: 23.8mm, Inner chase size: 600 x 430 mm, Max. delivery pile height: 800 mm, Max. Die Cutting Pressure: 180 Tons, Max. die cutting size: 590 x 410mm, Max. feeding pile height: 900 mm, Max. paper size: 600 x 420mm, Max. Speed: 10000 strokes per hour, Min. distance to 1st rule: 8-16mm, Min. gripper margin: 9mm, Min. paper size: 280 x 180mm, Motorized front lays with optical monitoring, Paper thickness: 80-2000 gsm, Pneumatic flap for test sheet removal, Pull or Push side lay on both sides, Step-less speed control, Suggested HS code: 8441.4000 (Automatic), Total Power: 10W, Total Weight: 5.5 Tons
| Type: | Die Cutter | ||
| Manufacturer: | Royo Machinery | Model: | RHT-600 |
Die cutting precision: +/- 0.075mm, Motorized front lays with optical monitoring, Max. Speed: 10000 strokes per hour, Gripper Margin: 8-17 mm, Digital LED control panel, Central lubrication with auto pump , CE Standard Machine, Automatic pressure adjustment, Air clutch, Total Weight: 5.5 Tons , Total Power: 10W, Frontal back and side registration mechanism, Min. paper size: 280 x 180mm, Max. paper size: 600 x 420mm, Max. feeding pile height: 900 mm, Max. die cutting size: 590 x 410mm, Dimensions: 3166 x 1890 x 1855 mm, Min. gripper margin: 9mm, Min. distance to 1st rule: 8-16mm, Max. die cutting pressure: 180 Tons, Inner chase size: 600 x 430 mm, Delivery pile height: 800 mm, Die cutting chase pneumatic locking mechanism, Suggested HS code: 8441.4000 (Automatic), Step-less speed control, Pull or Push side lay on both sides, Pneumatic flap for test sheet removal, Recommended height of cutting rules: 23.8mm, Die cutting plate size: 600 x 420mm, Corrugated board up to 4mm, Specifications are subject to change without notice
