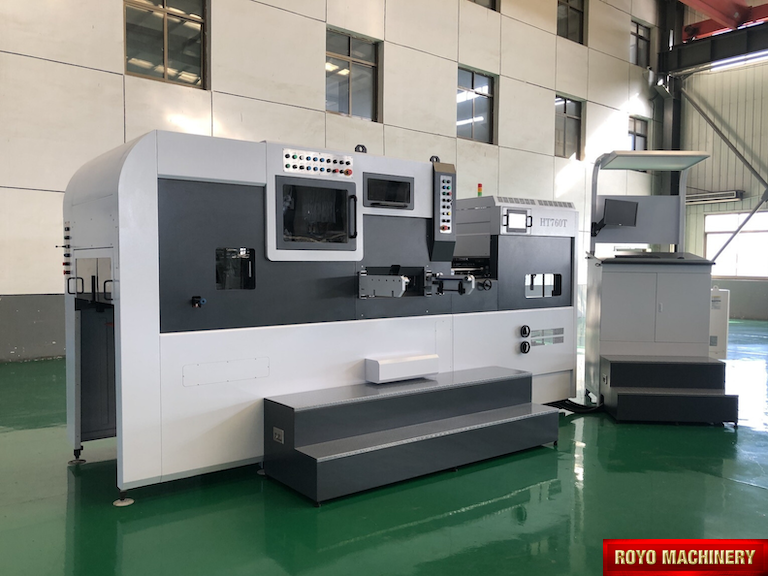

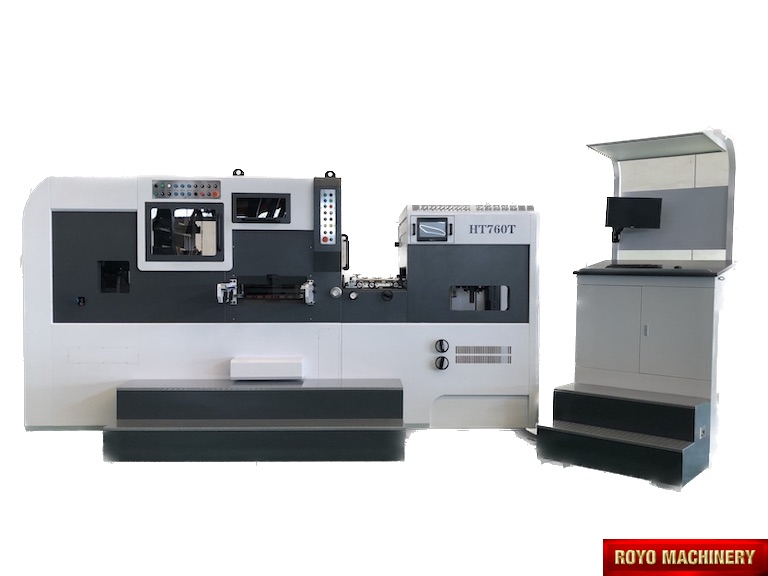

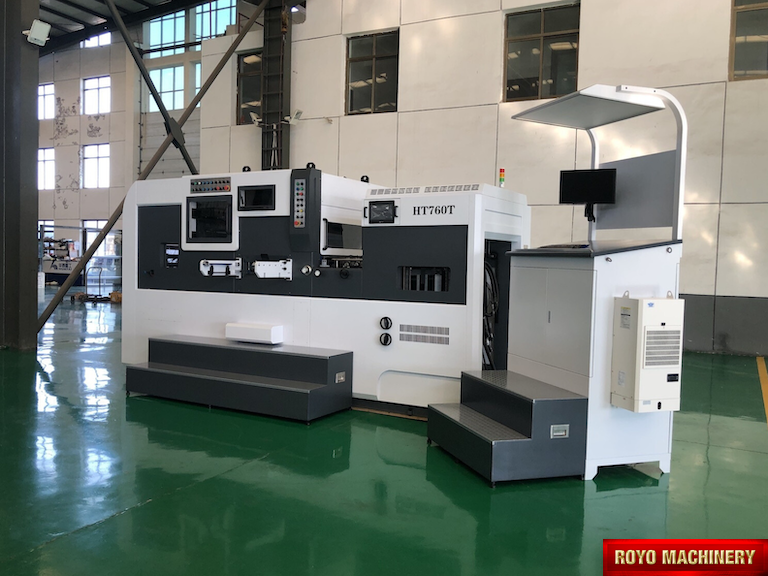

New Die Cutter Royo Machinery RHT-760T
New Die Cutter Royo Machinery RHT-760T, Features: Air clutch, Air pressure: 7 bar 0.3m3/min, Automatic pressure adjustment, CE Standard Machine, Central lubrication with auto pump , Corrugated board up to 4mm, Delivery Pile Height: 940 mm, Die Cutting Precision: +/- 0.1mm, Digital LED control panel, Dimensions: 4468 x 2866 x 2309 mm, Feeding Pile Height: 1050mm, Feeding Pile Height: 1280mm, Foil feeding units: 3 (Longitudinal advance) , Foil Stamping, Heating System, Heating Zones: 8, Inner chase size: 765 x 530mm, Max. Die Cutting Pressure: 250 Tons, Max. Foil Roll Diameter: 250mm (Longitudinal advance), Max. Foil stamping size: 750 x 510mm, Max. foil stamping speed: 9000 strokes per hour, Max. Paper size: 760 x 520mm, Max. Speed: 9000 strokes per hour, Min. distance to 1st rule: 12 mm, Min. gripper margin: 7 mm, Min. Paper size: 320 x 260mm, Non-stop delivery with rolling curtain, Non-stop feeder and delivery, Paper thickness: 80-2000 gsm, Pneumatic flap for test sheet removal, Pre-loader, Programmable foil advance, Pull or Push side lay on both sides, Recommended height of cutting rules: 23.8mm, Step-less speed control, Suggested HS code: 8441.4000 (Automatic), Total Power: 32kw, Total Weight: 14 Tons, Ultrasonic & Mechanical double-sheet detector, Voltage: 220V 3PH 60Hz
| Type: | Die Cutter | ||
| Manufacturer: | Royo Machinery | Model: | RHT-760T |
Central lubrication with auto pump , CE Standard Machine, Automatic pressure adjustment, Voltage: 220V 3PH 60Hz, Non-stop feeder and delivery, Min. Paper size: 320 x 260mm, Max. Speed: 9000 strokes per hour, Max. paper size: 760 x 520mm, Max. die cutting pressure: 250 Tons, Suggested HS code: 8441.4000 (Automatic), Heating System, Foil Stamping, Ultrasonic & Mechanical double-sheet detector, Die cutting Precision: +/- 0.15mm, Delivery Pile Height: 940 mm, Corrugated board up to 4mm, Total Weight: 14 Tons, Total Power: 32kw, Programmable foil advance, Pull or Push side lay on both sides, Pre-loader, Step-less speed control, Foil feeding units: 3 (Longitudinal advance) , Pneumatic flap for test sheet removal, Recommended height of cutting rules: 23.8mm, Non-stop delivery with rolling curtain, Min. gripper margin: 7 mm, Min. distance to 1st rule: 12 mm, Inner chase size: 765 x 530mm, Heating Zones: 8, Feeding Pile Height: 1280mm, Max. Foil stamping size: 750 x 510mm, Max. Foil Roll Diameter: 250mm (Longitudinal advance), Feeding Pile Height: 1050mm, Dimensions: 4468 x 2866 x 2309 mm, Digital LED control panel, Air pressure: 7 bar - 0.3 m3/min, Max. Foil Stamping Speed: 9000 strokes per hour, Air clutch, Specifications are subject to change without notice
