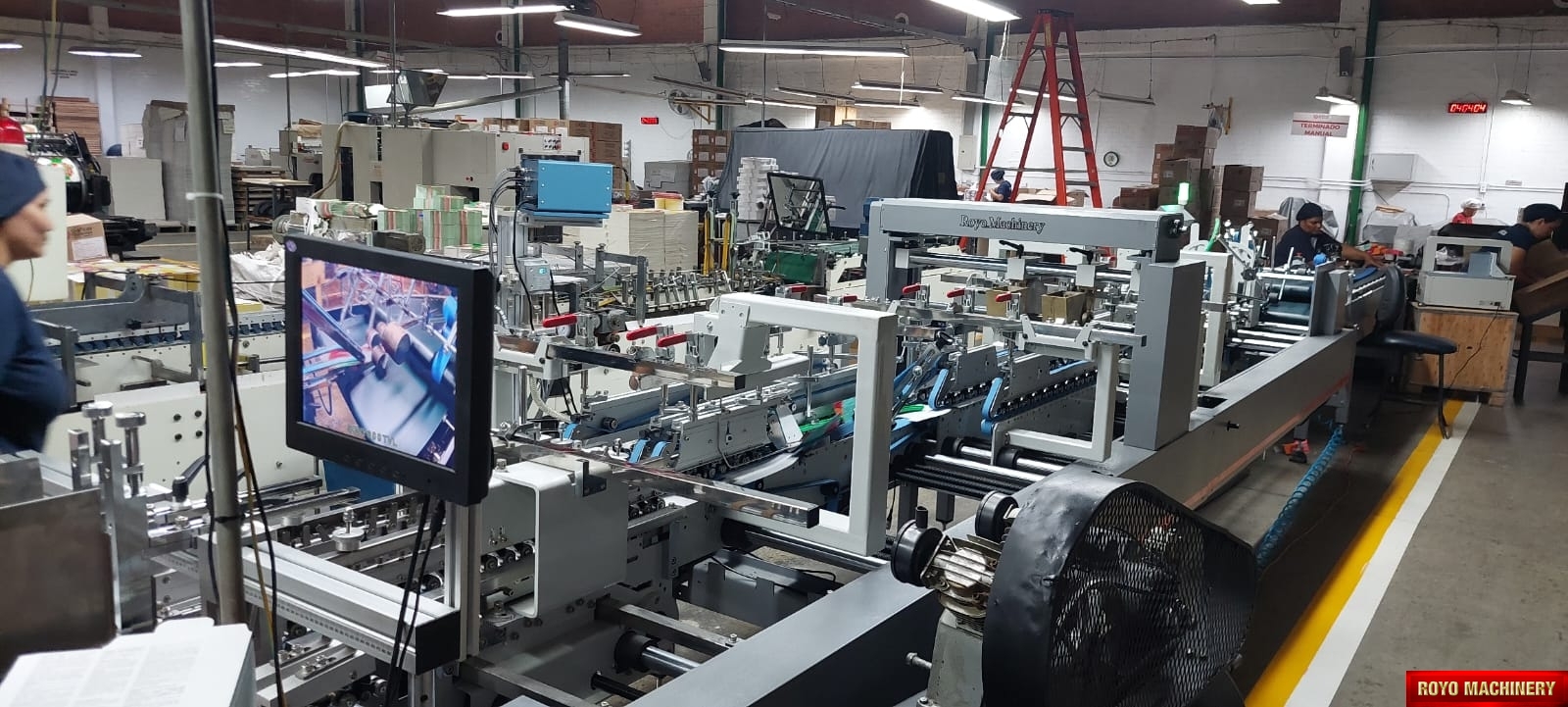

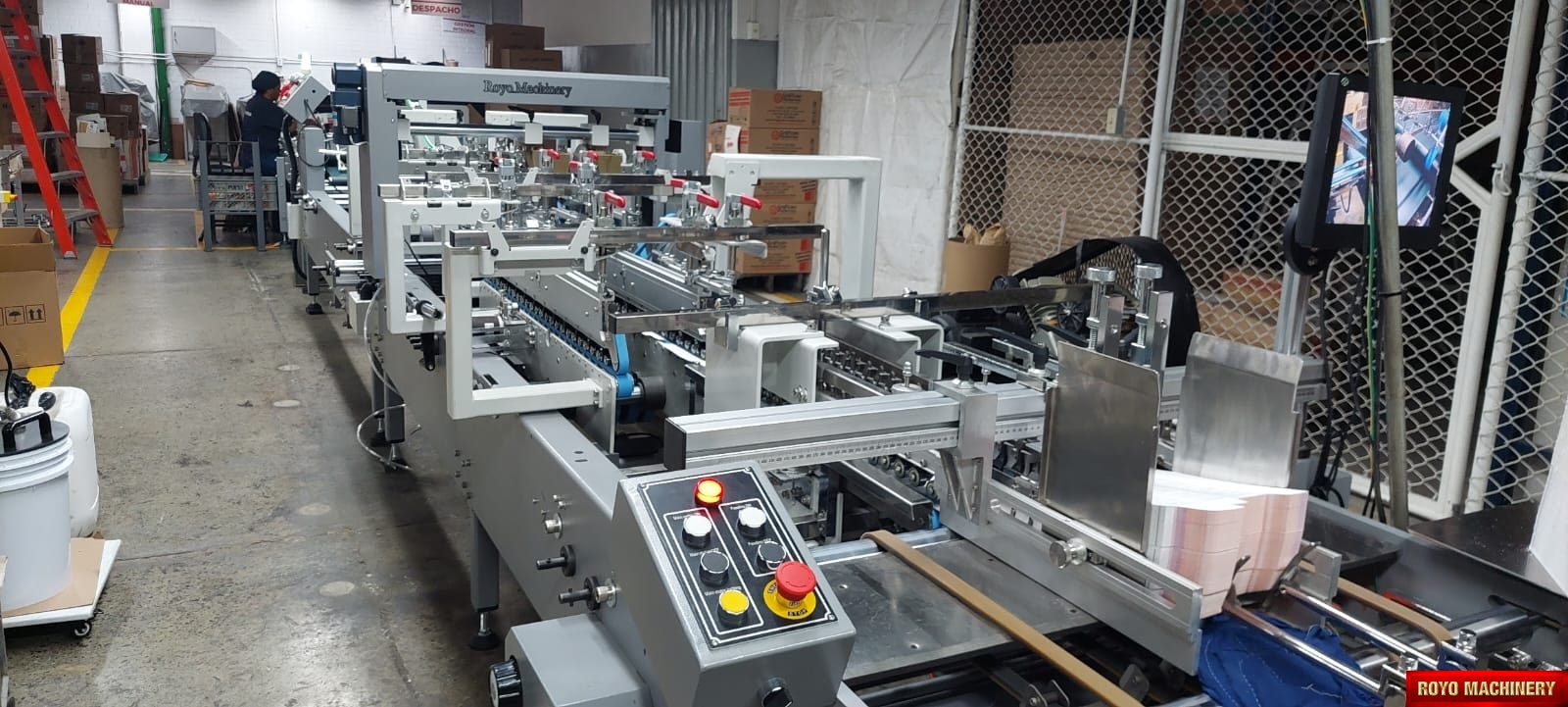

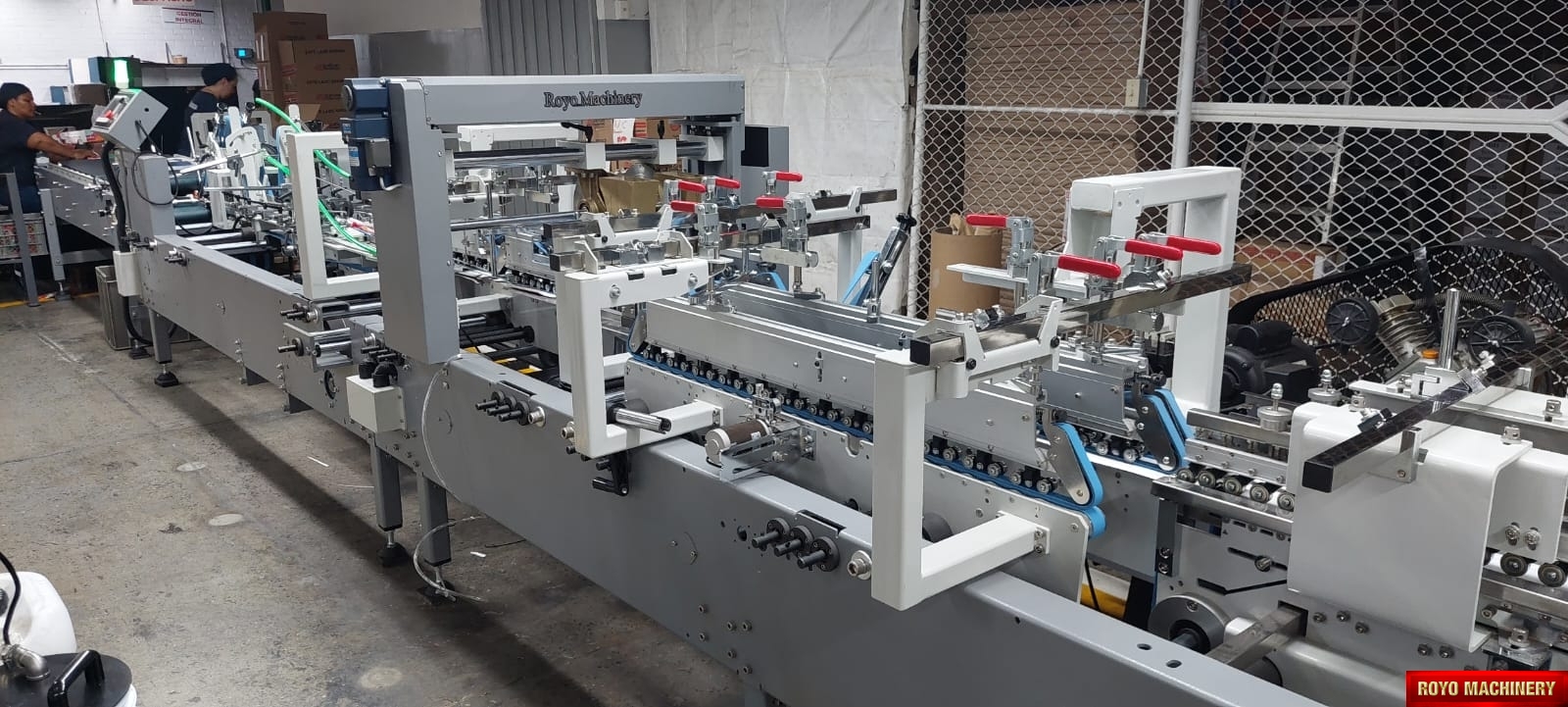

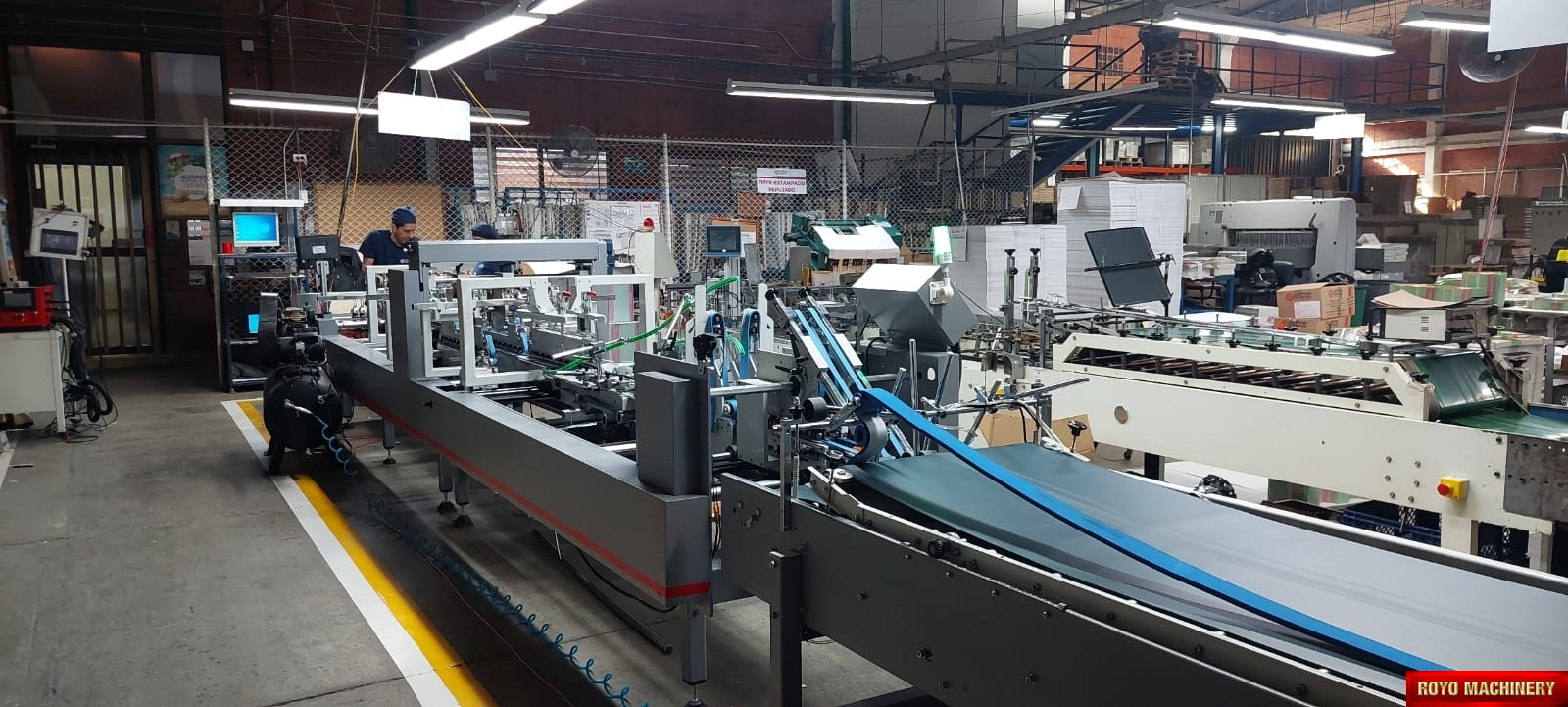

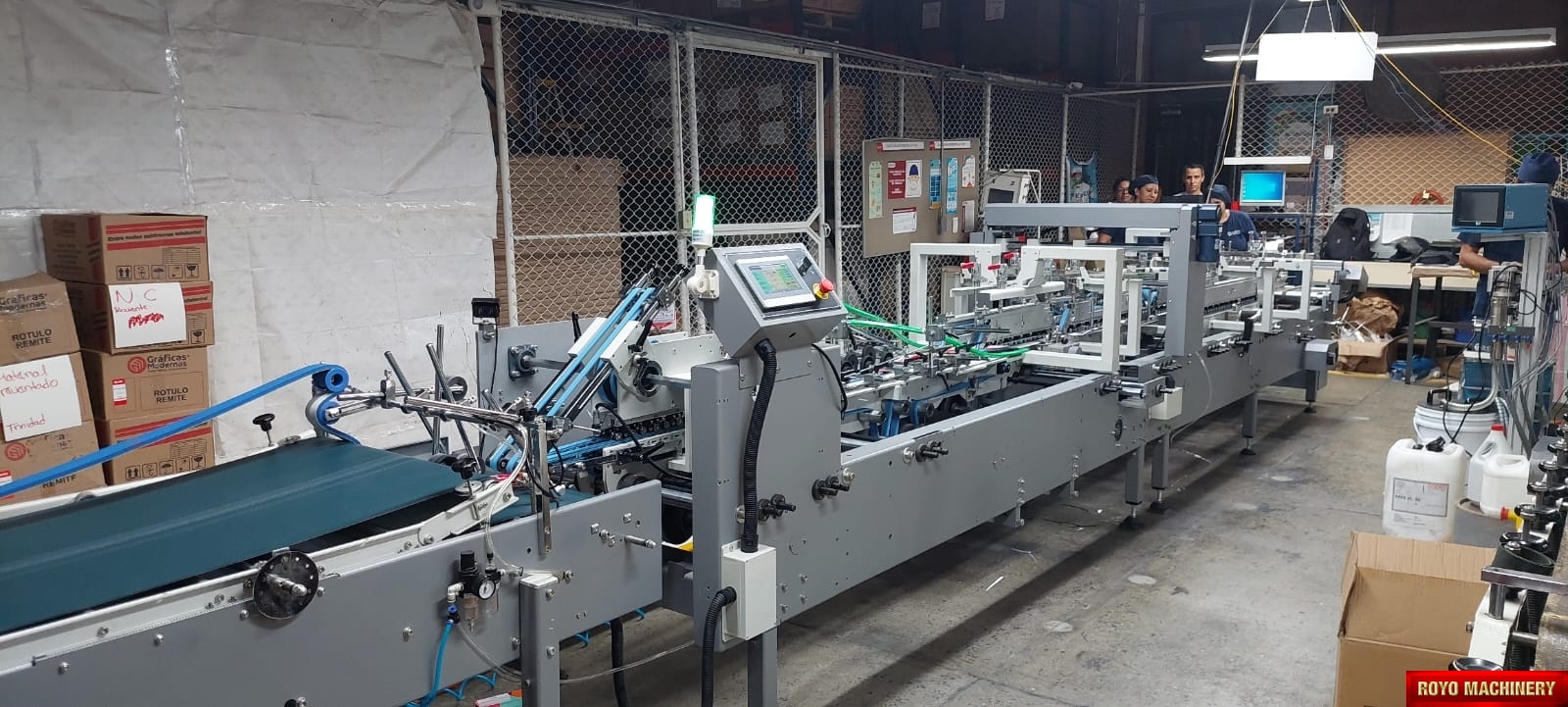

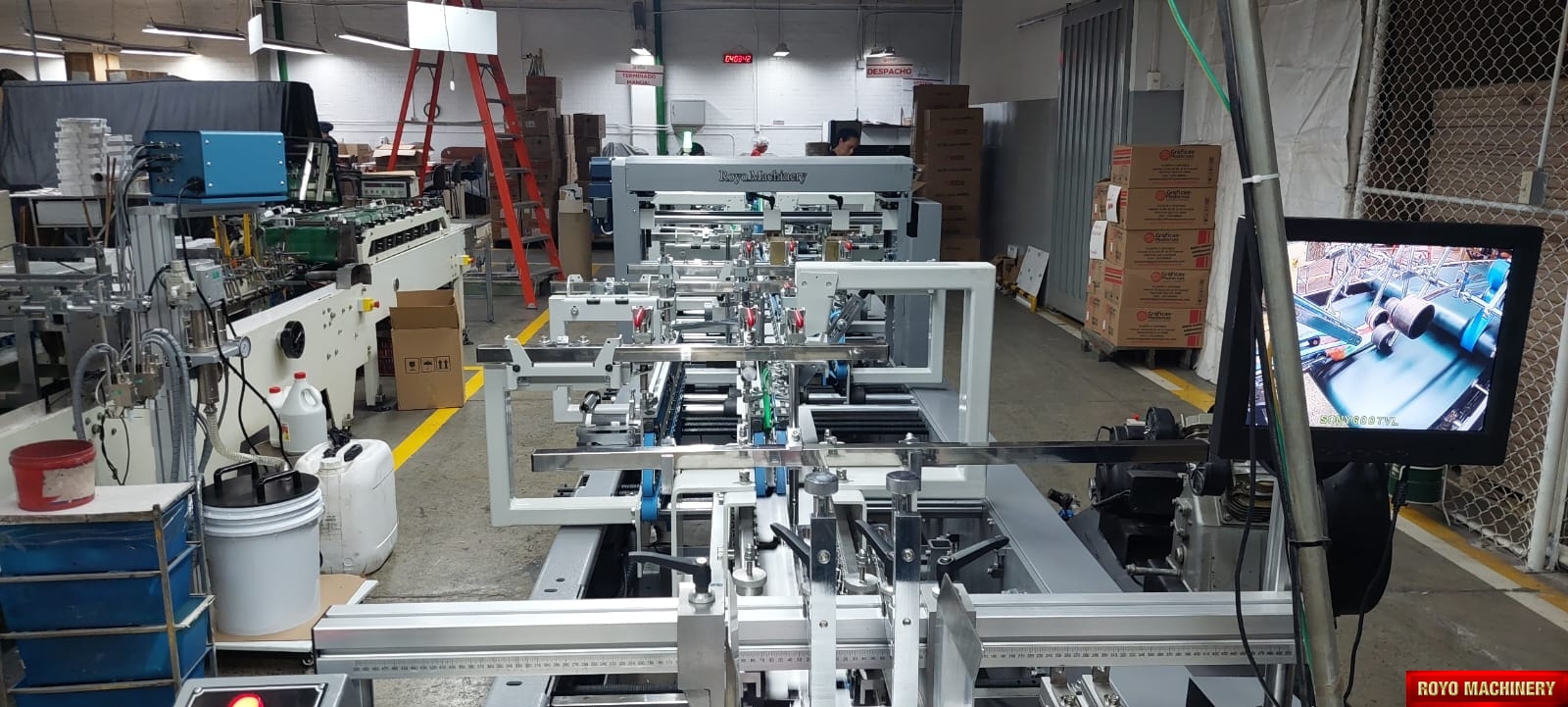

New Box Folder Gluer Royo Machinery RZH-GD800 G
New Box Folder Gluer Royo Machinery RZH-GD800 G, handles many different types of paper boxes. The machine has a pre-folding section and edge-grinding mechanism. It is designed for easy and convenient adjustment for different sizes and box types, including three-point (lock bottom gluing) or one-point (side gluing). It is also of simple operation, and it is an ideal equipment for medium to large size packaging factories. Features: Adjustable electronic pile vibrator, Carton thickness: 200-700 gsm, Configuration: Feeder-Pre Folding-Lock Bottom-Folding-Pressing, Continuous friction feeder with variable speed, Crash lock bottom, Dimensions: 12000 x 1560 x 1600 mm, Disc applied double upper gluing system, Double wall (optional), Edge-grinder, Lock bottom: 90 degrees pre-folding for No.3 line, Max. Box size: 700 x 550mm Lock Bottom, Max. Box size: 800 x 550mm Side Gluing, Min. Box size: 200 x 100mm Lock Bottom, Min. Box size: 75 x 80mm Side Gluing, Side gluing: 135 degrees pre-folding for No.1 line, Speed: 0-300m/min, Straight Line, Total Power: 10.26kw, Weight 4.2t
| Type: | Box Folder Gluer | ||
| Manufacturer: | Royo Machinery | Model: | RZH-GD800 G |
Continuous friction feeder with variable speed, Weight 4.2t, Total Power: 10.26kw, Min. Box size: 200 x 100mm Lock Bottom, Min. Box size: 75 x 80mm Side Gluing, Speed: 0-300m/min, Straight Line, Max. Box size: 800 x 550mm Side Gluing , Max. Box size: 700 x 550mm Lock Bottom, Edge-grinder, Double wall (optional), Disc applied double upper gluing system, Dimensions: 12000 x 1560 x 1600 mm, Crash lock bottom, Configuration: Feeder-Pre Folding-Lock Bottom-Folding-Pressing, Carton thickness: 200-700 gsm, Adjustable electronic pile vibrator, Side gluing: 135 degrees pre-folding for No.1 line, Lock bottom: 90 degress pre-folding for No.3 line, Specifications are subject to change without notice
